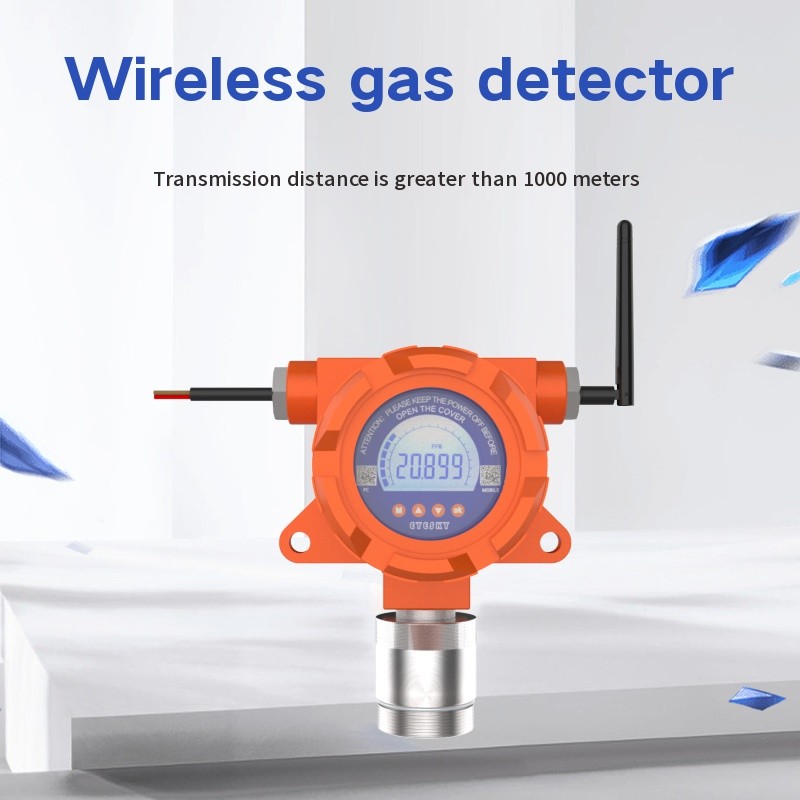

Wall Mounted IP66 Aluminum Alloy Wireless Gas Detector For Safety
Monitor
Product features:
1. Iot gas detector can realize remote data monitoring and grid
layout.
2, intelligent temperature and humidity and zero compensation
algorithm, full software automatic calibration function,
3. White, orange and red backlight design, normal and alarm status
indication, clear at a glance;
4. Multiple units including mg/m3, PPM, VOL and LEL are available;
5. Automatic protection against impact of high concentration gas,
with factory Settings restored to prevent misoperation;
6, the instrument is equipped with infrared remote control, through
the remote control operation, no need to open the cover, simple and
convenient;
7. Independent air chamber structure, convenient sensor
replacement, no need for on-site calibration;
8. Explosion proof grade is Exd II CT6, certified by national
explosion proof electrical inspection center;
9, zero automatic correction: for some environmental applications,
the instrument can achieve zero automatic correction function;
10. Self-diagnosis function. The detector can monitor the working
state and performance of its key hardware (voltage and signal of
key points, etc.).
11. Bilingual operating system: it can switch between Chinese and
English systems;
Technical parameters:
| Size | (H x W x D)320*230*110mm |
| Weight | 3000g |
| Detected principle | Electrochemistry |
| Measure range | 00-2000ppm,0-5%,50%,100%VOL |
| Resolution | 1ppm,0.01%VOL,0.1%VOL |
| Precision | ≤±2%F.S (Higher measure range can be customized) |
| Pump flow rate | Flow rate range:0-800 mL/Min |
| Display Screen | 2.4-inch color display, resolution 320*240 resolution |
| Display contents | Gas molecular formula, concentration, unit, pump status, etc. |
| Alarm | buzzer, alarm status prompt on the display |
| Data logging | Independent SD memory card, automatic measurement of measurement
data, customizable recording interval |
| Communication and data download | It can be directly connected to the computer via USB to quickly
download the TXT file for storing data; with the PC software to
download, store, analyze and print the data. |
| Power supply | 12-36V DC |
| Wireless network | Built-in module to upload data to the network platform, regardless
of distance (optional) |
| Network frequency | 2.4G high frequency |
| Installation method | Wall-mounted, pipe-flow type (optional) |
| Language | Chinese / English |
| Humidity | 0～95%RH (no condensation) (optional filtration device can be
equipped if in hyperhumidic ares ) |
| Temperature | -20℃~+50℃ (optional filter can be equipped if over temperature) |
| Explosion-proof | Ex d IIC T6 Gb |
| Protection degree | IP65 |
| Certificate | measuring instrument license, explosion-proof certificate,
CE,ISO9001 |
