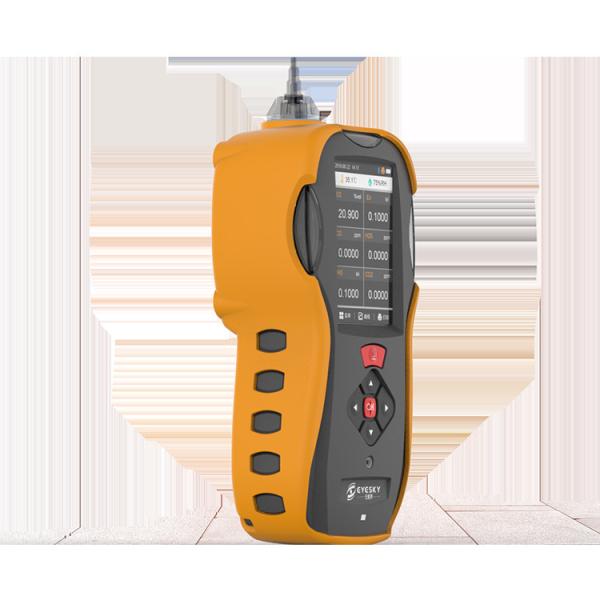

Pump Suction 106kPa Exhaust Gas Monitoring System For Automotive
Monitor Industry
Functional characteristics
Smart sensors, flexible change, most can detect six kinds of gas at
the
same time
Pump suction sampling, sampling distance of more than 10 meters
Six gases at the same time display, single display, curve of three
kinds of
interface can be switched
3.5 -inch color LCD screen, display in both English and Chinese,
the gas
concentration unit support PPM, PPB, PPH, VOL %, % LEL, mg/m3,
ug/m3
Built-in water dust filter and temperature compensation function to
ensure accuracy of measurement
Gas path blockage detection alarm, effectively protect the getter
pump
and sensors
Fall alarm function, prevention workers poisoning faint signal
alarm calls
Support bluetooth communication, optional bluetooth printer
Computer export data, check the curve
Modular battery, can replace the battery, external physical
interface only
charging interface
Calibration time remind of sensor and sensor life remind
Bulk data recording
Performance
Detection gas: can accurately detect six kinds of gases such as
NH3, H2S
and O2 at the same time (see the gas selection table in the
appendix for details)
Detection method: pump suction type
Range: see appendix
Detection principle: catalytic combustion, infrared detection,
electrochemistry, photoion, PID, thermal conductivity3
Accuracy: ≤±3%F.S; (Actual concentration, higher accuracy is
required
according to sensor performance)
Reduplication: ±2%
Response time: T90 < 30S (different sensors have different
response times)
Data storage: the standard capacity of 80,000 pieces of data
support the
machine to view, delete or data export, support the upper
computer to export data
Electrical characteristics
Charger: USB powered DC5V
Charging time: ≤12 hours
Working time: > 10 hours (at room temperature, no alarm)
Power consumption: < 3W
Battery capacity: 7500mAh lithium battery, nominal voltage: 3.7VDC
Structural features
Main material: ABS+PC
Weight: about 0.28Kg (not including sensor)
Size: 206.5*70*36mm (L*W*H)
Electrical service environment
Protection class: IP54
Temperature range: -20℃ ~ +50℃
Humidity range: 10 ~ 95%RH (no condensation)
Pressure range: 86 ~ 106kPa
