Brand Name : | Eyesky |
Model Number : | ES10B |
Certification : | CE,ROSH |
Payment Terms : | L/C, T/T, Western Union, MoneyGram |
Delivery Time : | 2~3 days |

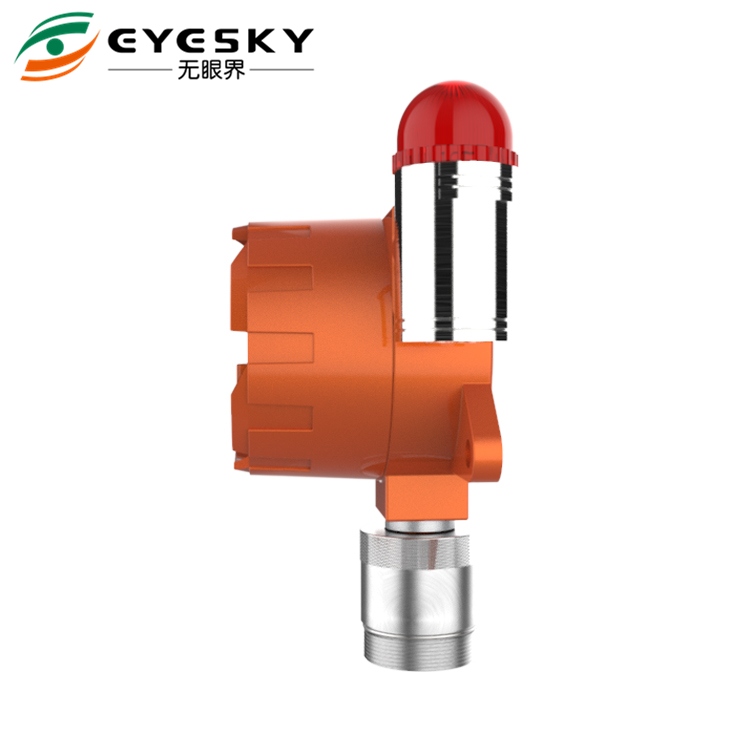

Fixed gas for Carbon monoxide gas leak monitor with LCD screen display, for pipe use
Respond time: | ≤20s(T90) |
Recovery time: | ≤20s |
Explosion grade: | Exd II CT6 |
Protection grade : | IP66 |
Signal output: | It can be determined by the user according to the actual environmental requirements of the site, and can transmit up to 2000m (single core 1mm2 shielded cable) |
Three-wire system 4-20ma current signal output, can be connected to alarm controller, PLC, DCS and other control systems (standard configuration) | |
RS-485 digital signal output, ModBus RTU communication protocol (optional function) | |
Frequency signal 200~1000Hz output (optional function) | |
Two groups of relay output: passive contact capacity 220VAC 0.5A or 5VDC 0.5A |
ES10B fixed combustible gas detector is the new design gas detector
by Eyesky technology base on the ES10A, adopt the ,which adopt the original
imported sensor and the new 32-bit low power ARM processor ;
Dashboard display interface, value and process bar show at the same time
, elegant appearance;
![]() |
