Chlorine Dioxide CLO2 Gas Leak Detector For Municipal Chemical
Fixed gas for Chlorine dioxide (CLO2) gas leak monitor for
municipal, chemical and other industries

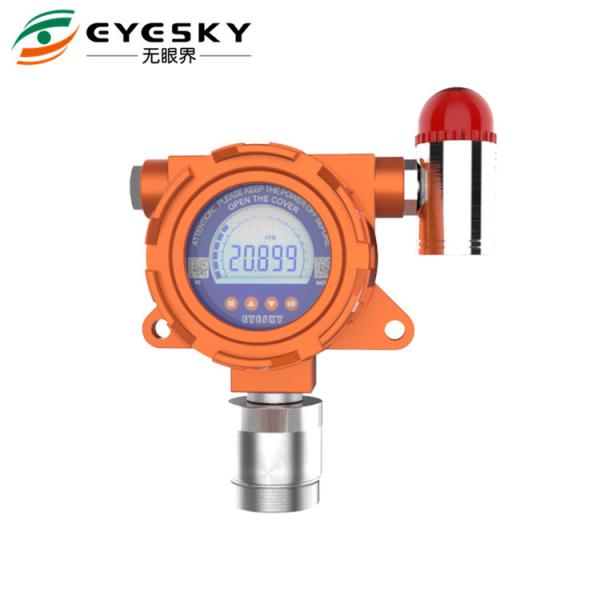

ES10B fixed combustible gas detector is the new design gas detector
by Eyesky technology base on the ES10A, which adopt the original
imported sensor and the new 32-bit low power ARM processor ;
Dashboard display interface, value and process bar show at the same
time
, elegant appearance； 4 digital tube display ,stronger to weak
signal and
anti-interference ; independence high accuracy imported 16 bit AD
chip and special signal processing algorithm , measuring date more
precise and more stable ;4~20mA,RS485,200~1000HZ multi output
signal optional ,convenient access to all kinds control system like
alarm
controller , PLC,DCS; Explosion construction design can use on all
kinds
of hazardous industrial filed; Products are widely used in
metallurgy, petroleum
and petrochemical, municipal, chemical and other industries.
| Explosion grade: | Exd II CT6 |
| Protection grade : | IP66 |
Signal output: | It can be determined by the user according to the actual
environmental requirements of the site, and can transmit up to
2000m (single core 1mm2 shielded cable) |
| Three-wire system 4-20ma current signal output, can be connected to
alarm controller, PLC, DCS and other control systems (standard
configuration) |
| RS-485 digital signal output, ModBus RTU communication protocol
(optional function) |
| Frequency signal 200~1000Hz output (optional function) |
| Two groups of relay output: passive contact capacity 220VAC 0.5A or
5VDC 0.5A |
