Explosion Proof CH4 Portable Methane Gas Detector

Ask Lasest Price
Brand Name :	EYESKY
Model Number :	ES30A
Certification :	CE,FCC,SIL,ROSH
Price :	150-500USD
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	1000 sets per year
Delivery Time :	3-5 work days

Add to Cart

Product Details
Company Profile

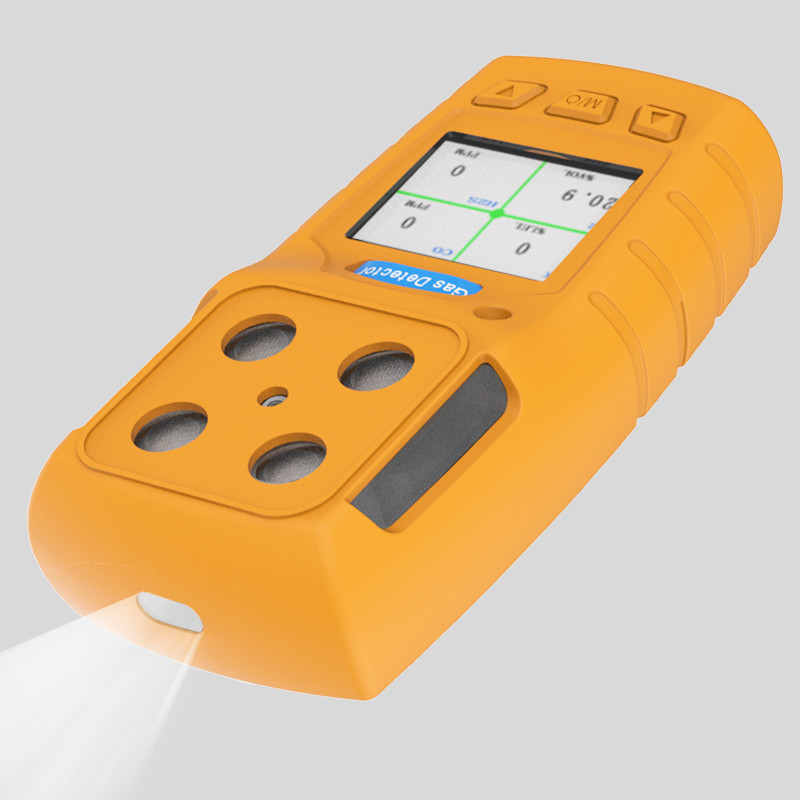

Explosion Proof CH4 Portable Methane Gas Detector

Portable gas detector used to detect the 6 kinds of gases at the same time, high accurate and fast response , it’s easy to operate and with the LED light very convenient to use in the underground ,such as mine, coal mine and tunnel, will send out the alarm signal once the concentration of detect gas is exceed immediately , protect the constructing worker’s health and remind them to leave to the safe place. gas detector applied for many industrial areas , including of the chemical industry, petroleum, gas station, metallurgy, coal mine, agriculture, biology pharmaceuticals, power, lab research and other industry environment

Features of Portable gas detector:
Imported sensor with high performance and fast response
TFT LCD screen display with LED light.
Record the alarm data of 10,000 sets.
Can set high and low alarm value
With the 32bit low power consumption ARM processor and quick response.
Restore factory setting function, avoid the mis-operation.
Three alarm mode: Audible, Visual, Vibration.
Support for 6 sensors detecting
Support the Chinese/English language menu.
The menu interface with words and icon.
LED light function, can provide the light in the dark area or other Emergency time.
LED indicate light, will flash in the dark area.
USB charger port.
Explosion-proof grade of Ex ib IIB T3 Gb；
Protect grade of IP64.

Explosion Proof CH4 Portable Methane Gas Detector

Item	Description
Gas type:	CH4 or customized;
Working principle:	Catalytic combustion sensor for combustible gas;
Working principle:	Electrochemical sensor for toxic gas and oxygen.
Testing mode:	Diffusion sampling.
Display mode:	TFT LCD display
Concentration Unit:	ppm
Measuring range:	CH4:0-100%LEL
Resolution:	0.1%LEL
Precision:	≤±3%FS;
Alarm mode:	Audible-visual alarm,Vibration alarm,Voice≥75dB@25cm;
Preheat time:	≤90s;
Response time:	T90≤30s;
Recovery time:	≤20s;
Explosion proof grade:	Ex ib IIB T3;
Protection grade:	IP64;
Output signal:	Wireless transmission and print function(Optional);
Body material:	PC+TPU;
Working temperature:	-20℃～+50℃(or customized);
Working humidity:	≤95%RH,(non-condensing);
Charger:	USB port;
Working voltage:	3.7V rechargeable lithium battery;
Charging time:	≤6 hours;
Working time:	＞8hours continuously(When normal temperature and no alarm);
Power consumption:	<0.7W;
Working pressure:	86～106KPa;
Dimension:	119.6x60x66mm(LWH);
Weight:	About 182g;
Warranty:	12 months;
Accessory:	Box, instruction, USB charger , data line, calibration cap.

Gas type	Measuring range
Ex	0~100%LEL
O2	0~25%vol/30%vol
H2S	0~100ppm/1000ppm
H2	0~1000ppm/60000ppm
N2	0~100%vol
NH3	0~100ppm/500ppm
C2H6O	0~100ppm/500ppm
SO2	0~20ppm/2000ppm
Cl2	0~10ppm/20ppm/50ppm/200ppm
HCl	0~50ppm/100ppm
HBr	0~50ppm/100ppm
ClO2	0~50ppm
NO	0~200ppm/500ppm/2000ppm
NO2	0~20ppm/100ppm/500ppm/2000ppm
HCN	0~30ppm/50ppm/100ppm
HF	0~10ppm
CH2O	0~10ppm
THT	0~50mg/m3
Helim	0~1000ppm
Argon	0~100%vol
SiH6	0~50ppm/100ppm
CH6S	0~20ppm
CO2	0~5000ppm/10000ppm
SF6	0~1000ppm
CH6	0~200ppm/10%vol
TVOC	0~20ppm/100ppm/1000ppm
CS2	0~10ppm/50ppm/100ppm
CH3Br	0~20ppm/100ppm/200ppm
CH6	0~10%vol/50%vol/100%vol
