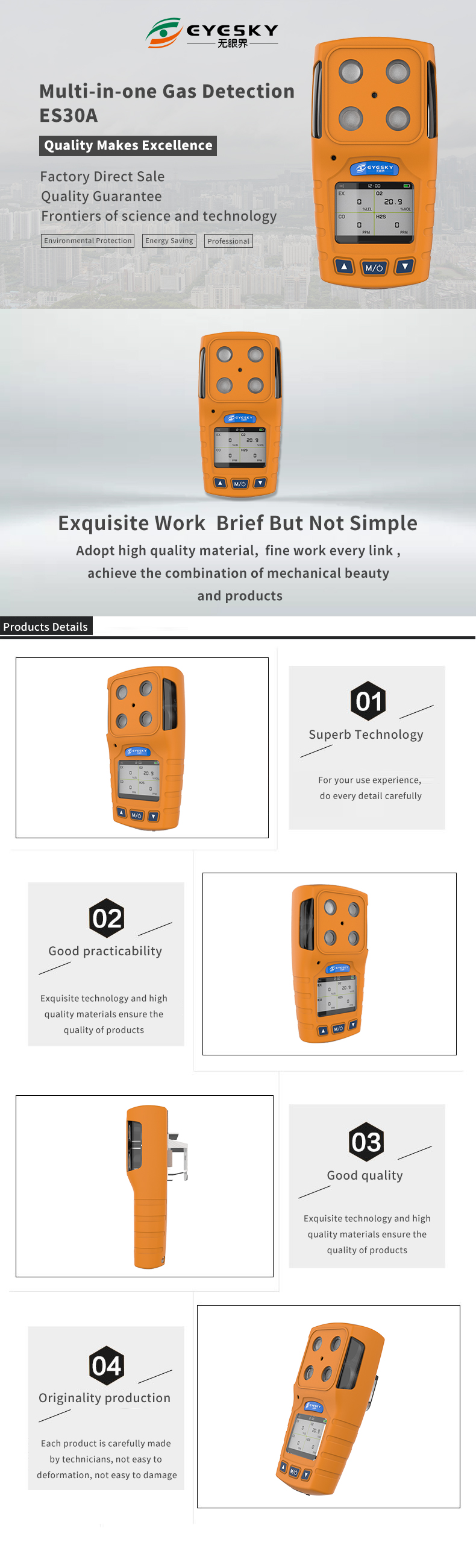

H2S Pump Suction Portable Gas Detector High Precision
Product features:
Portable 6 in 1 gas detector used to detect the gas concentration
in many applications, including of the chemical industry,
petroleum, gas station, metallurgy, agriculture, biology
pharmaceuticals, power, lab research and other industry environment
where need to inspect combustible or toxic gas concentration.
The Portable 4 in 1 gas detector with the LED light, it’s very
convenient for the underground usage, such as the Mine, Coal Mine,
Tunnel, etc.
Features of Portable 6 in 1 gas detector:
Original imported sensor with high performance and precision, good
stability and repeatability, long working time.
TFT LCD screen display the measuring data.
Record the alarm data of 10,000 sets.
Adjustable preset two-stage alarm level.
With the 32bit low power consumption ARM processor and quick
response.
Restore factory setting function, avoid the mis-operation.
Three alarm mode: Audible, Visual, Vibration.
Support for 4 sensor at the same time.
Support the Chinese/English language menu.
The menu interface with words and icon.
LED light function, can provide the light in the dark area or other
Emergency time.
LED indicate light, will flash in the dark area.
USB charger port.
Explosion-proof grade of Ex ib IIB T3 Gb；
Protect grade of IP65.
| Item | Description |
| Detecting gas: | vocs |
| Working principle: | Catalytic combustion, electrochemistry, infrared absorption
spectrum principle |
| Sampling method: | Pump suction/dispersive |
| Measure range: | 0-100,500,1000,5000,10000,40000ppm(Optional, other range can be
customized) |
| Resolution: | 0.1ppm,1ppm |
| Accuracy: | ±3%FS |
| Repeatability: | <3% |
| Respond time: | T90 ≤30 sec |
| Alarm method: | Sound and light alarm, double color LED lamp, sound or 75 db @ 25
cm |
| Operation method: | Key operation(Life time of keys:2000000 times) |
| Material of host: | Full metal jacket, strong wear resistant corrosion, feel is good |
| Working temperature: | -30℃~+70℃(Conventional gas),-20℃~+50℃(poisonous gas) |
| Working humidity: | 10%RH ~95%RH,No condensation |
| Working pressure: | 86kPa~106kPa |
| Battery: | Built-in high-performance lithium-ion batteries, import core:
nominal voltage 3.7 VDC, 2500 mah |
| Charger: | Travel charger with USB interface, USB power supply DC5V, charging
temperature range: 0 ℃ to 40 ℃ |
| Charging time: | ≤6 hours, total charged time 12 hours |
| Continuous working time: | ≥12 hours |
| Dimension: | 135x65x35mm(LxWxH) |
| Weight | About 0.46Kg |
| Protection grade: | IP66 |
| Execution standard: | GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010 |
| Quality assurance: | One year warranty, the warranty period free maintenance, sensitive
components such as sensors, according to the standard of sensor
manufacturers. |
